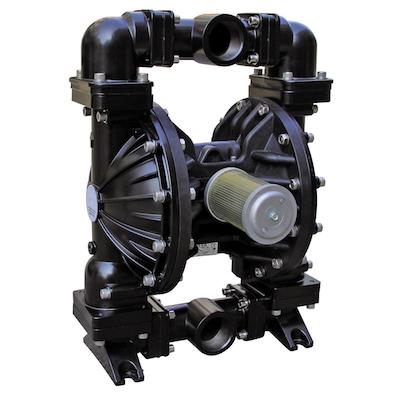

Description

MATERIAL – DIAPHRAGM SANTOPRENE
PUMP APPLICATIONAIR OPERATED, CHEMICAL PUMP, HIGH VISCOSITY, SELF-PRIMING, SOLIDS HANDLING
INLET/OUTLET CONNECTION TYPE: BSP
OUTLET SIZE: 2 IN
SOLIDS HANDLING: 1/4 IN
MATERIAL – BALLSS:ANTOPRENE
MATERIAL – SEATS: SANTOPRENE
MAX AIR INLET PRESSURE: 120 PSI (8.3 BAR)
MAX FLOW: 172 GPM (651.1 LPM)
MAX FLUID PRESSURE: 120 PSI (8.3 BAR)
MAX TEMPERATURE: 350°F (176.7°C)
NOISE LEVEL: 85.0 DB(A)
ALUMINUM AIR,  BSP THREAD, ALUMINUM FLUID CAP/MANIFOLD, PLATED STEEL HRDWR, SANTOPRENE SEAT, SANTOPRENE BALL, SANTOPRENE DIAPHRAGM
